In Stock

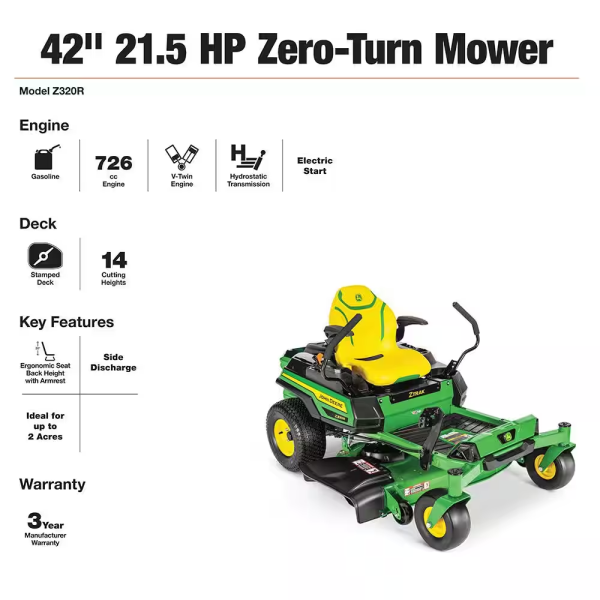

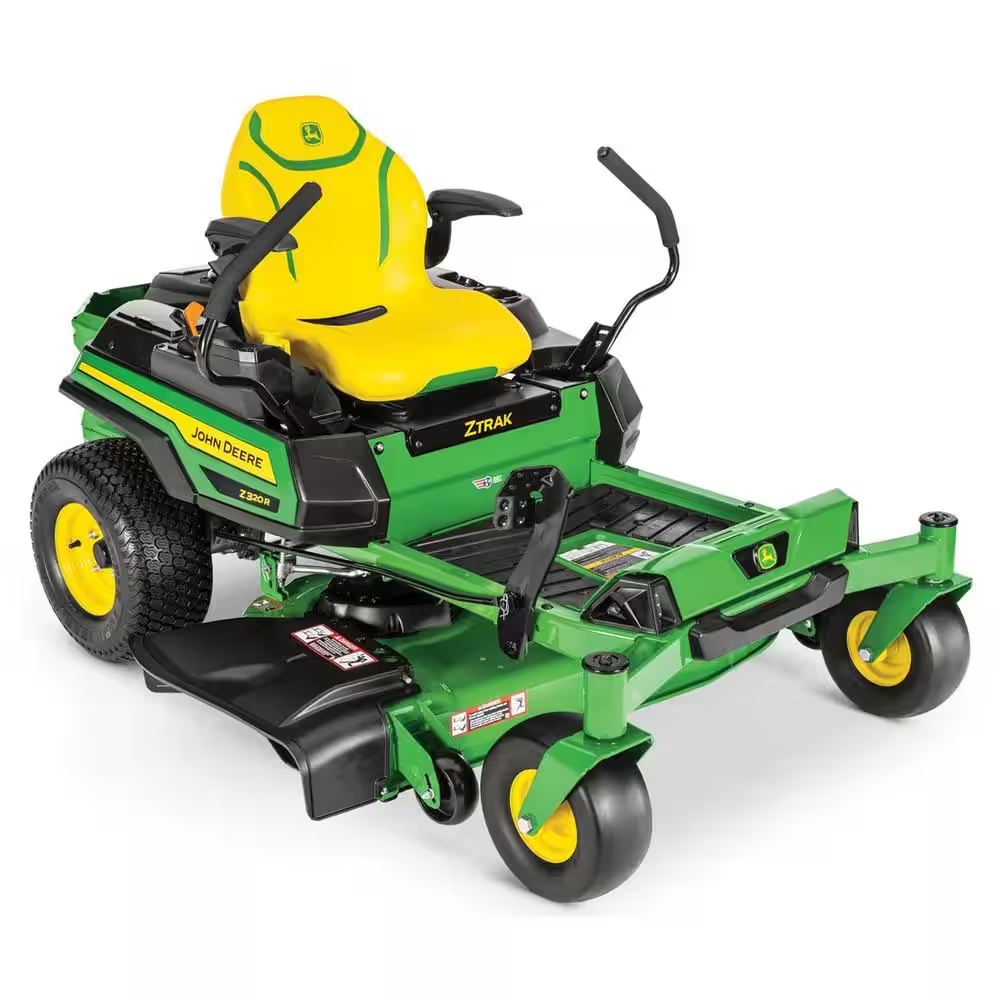

Z320R 42 In. 21.5 HP Gas Dual Hydrostatic Zero-Turn Riding Mower

$639.00

  • Free global shipping on all orders
  • 30 days easy returns if you change your mind
  • Order before noon for same day dispatch
Guaranteed Safe Checkout

Description

Built in Greeneville, TN, the new Z320R is designed for improved ride quality and durability with a tougher frame and larger front tires. Easy to operate, the 21.5 HP V-Twin John Deere engine delivers a smooth, powerful performance. The 42 in. (107-cm) Accel Deep mower deck produces a superior lawn at higher mowing speeds and is easily equipped to bag or mulch.
  • 21.5 HP V-twin John Deere engine for powerful performance during tough mowing conditions
  • 42 in. accel deep mower deck delivers a superior lawn at higher mowing speeds
  • Convenient foot lift with adjustment dial is used to easily raise the mower deck for setting cutting heights from 1.25 in. to 4.5 in.
  • Large 3 Gal. fuel tank ensures you have hours of mowing time on a single fill
  • Integrated park brake activates when you are done mowing, automatically engaging when the steering levers are in the outward position
  • Finish faster with mowing speeds up to 7 mph, dual EZT transmissions and large 18 in. drive tires
  • Standard LED lights for better visibility on overcast days or in dusk conditions
  • Ride in comfort with 20 in. adjustable, custom-tailored high back seat with armrests
  • Floor mats and covered tool storage are conveniently standard
  • Foot platform is easily removed for access to the top of mower deck for maintenance and cleaning
  • Motion control levers can be adjusted for greater comfort
  • On-the-go tracking adjustment allows user to easily adjust motion control levers from the seat when levers are out of alignment
  • Do more than mow with optional attachments, the bagger (BUC11342), mulch control kit (BUC10704) and hitch (BUC11477) are each sold separately
  • Be sure to register your 3-year/200-hour bumper to bumper warranty and stay connected with your servicing John Deere dealer
  • Hassle free ownership – inspected, tested and spported: a John Deere authorized technician will perform a thorough 10 point pre-delivery inspection on all new John Deere mowers prior to sale
  • Engine horsepower and torque information are provided by the engine manufacturer to be used for comparison purposes only, actual operating horsepower and torque will be less, refer to the manufacturer’s website for additional information
 Export to Excel
Engine power 21.5 hp
16.0 kW
Engine model number FR651V
Forward speed 0-7 mph
0-11.3 km/h
Front caster tires 11×6-5
Drive tires 18×8.5-8
Seat back height High back with armrests, 20 in.
51 cm
Width of cut Accel Deep™ mower deck, 42 in.
107 cm
Mulching system Optional MulchControl™ attachment
Warranty 3 year or 200 hour bumper-to bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Key Specs
Power 21.5 hp
16.0 kW
Model number FR651V
Displacement 44.3 cu in.
726 cc
Cylinders V-twin
Lubrication Full pressure with replaceable filter, capacity, 2.2 U.S. qt
2.1 L
Type Overhead valve
Battery 12 V
300 CCA
Choke/speed control Separate levers
Cooling method Air
Fuel tank capacity 3.0 U.S. gal.
11.4 L
Fuel gauge Translucent tank
Engine
Dual hydros Hydro-Gear EZT-C with 1-in. (2.5-cm) axles
Drive train
Forward speed 0-7 mph
0-11.3 km/h
Reverse speed 0-3.5 mph
0-5.6 km/h
Speed and direction control Twin levers
Control adjustment 3 height, 11 positions
Travel speed
Frame Heavy-duty 2.5-in. x 2-in. (6-cm x 5-cm) front, and 1.5-in. x 2-in. (4-cm x 5-cm) side tubing
Primer/paint E-coat/powder
Front caster tires 11×6-5
Front caster bearings Sealed ball bearings
Drive tires 18×8.5-8
Hour meter Yes
Service interval decal Yes
Storage compartment Standard covered
Cup holder Yes
Maximum towing capacity 250 lb
113 kg
Chassis
Seat back height High back with armrests, 20 in.
51 cm
Fore-aft adjustment 2.9 in.
7 cm
Seat suspension Two springs
Seat
Type Foot lift
Mower cut height 1.25-4.5 in.
3-11 cm
Cut height increments 0.25 in.
0.64 cm
Preset cut height Yes
Lift system
Width of cut Accel Deep™ mower deck, 42 in.
107 cm
Type Side discharge
Mower deck material 12 gauge
0.105 in.
2.7 mm
Mower drive system V-belt
Mower deck
Type Electric, 105 lb-ft
142 Nm
Drive V-belt
PTO
Wheelbase 49.4 in.
1255 mm
Overall length 75.4 in.
1915 mm
Width without mower 43.3 in.
1100 mm
Width with mower 50.4 in.
1280 mm
Width with mower (deflector raised for storage) 46.5 in.
1180 mm
Height 43.3 in.
1100 mm
Weight 572 lb
260 kg
Dimensions
Rollover protective structure (ROPS) No
Slope operating limit 13 degrees; 10 degrees with Material Collection System
Operator presence system Yes
Park brake interlock Yes
Operator video Yes, online
Operation
Note 1 Durable Accel Deep Mower Decks are made from 12-gauge steel with double captured mower wheels
Note 2 Easily change cut height from 1.25 to 4.5 in. (3 to 11 cm) using the foot lift and cutting height dial
Note 3 Integrated park brake is automatically applied when steering levers are stowed outward
Warranty 3 year or 200 hour bumper-to bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Buyer’s notes
Mulching system Optional MulchControl™ attachment
Rubber floor mat Standard
Sun shade Optional
Mounted sprayer Not available
Protective cover Optional
Light kit Standard
Material collection system Two-bag cut-and-throw MCS, 6.5 bu
229 L
Optional attachments
Manufacturing location Greeneville, Tennessee, USA
Date collected 3-Oct-22
