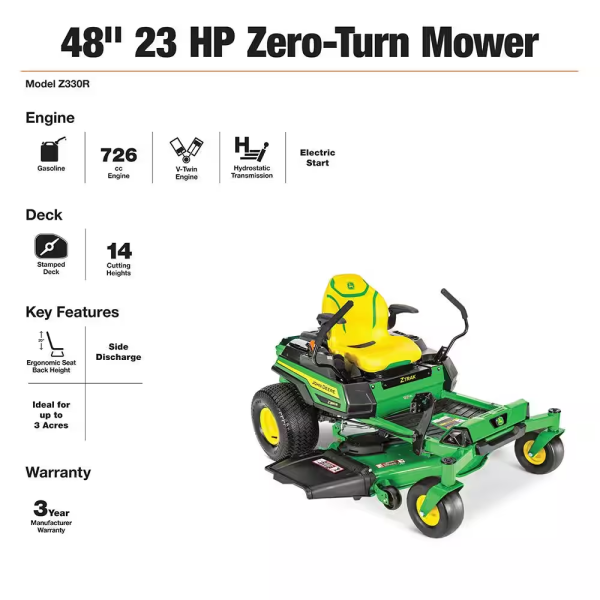

Z330R 48 In. 23 HP Gas Dual Hydrostatic Zero-Turn Riding Mower

Description

• Specifications

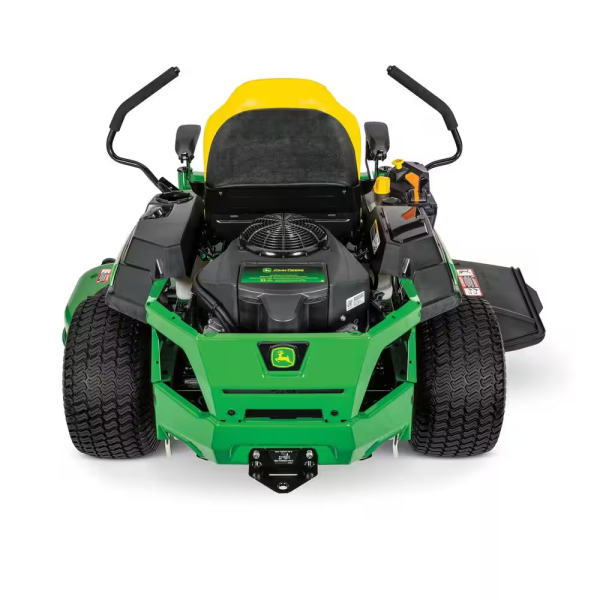

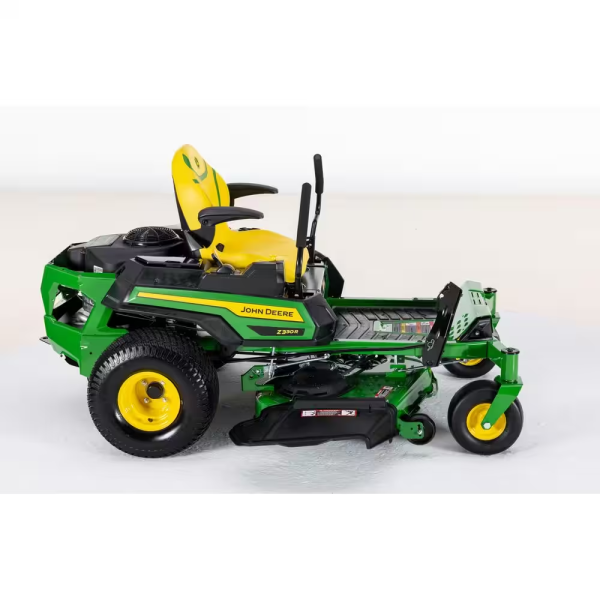

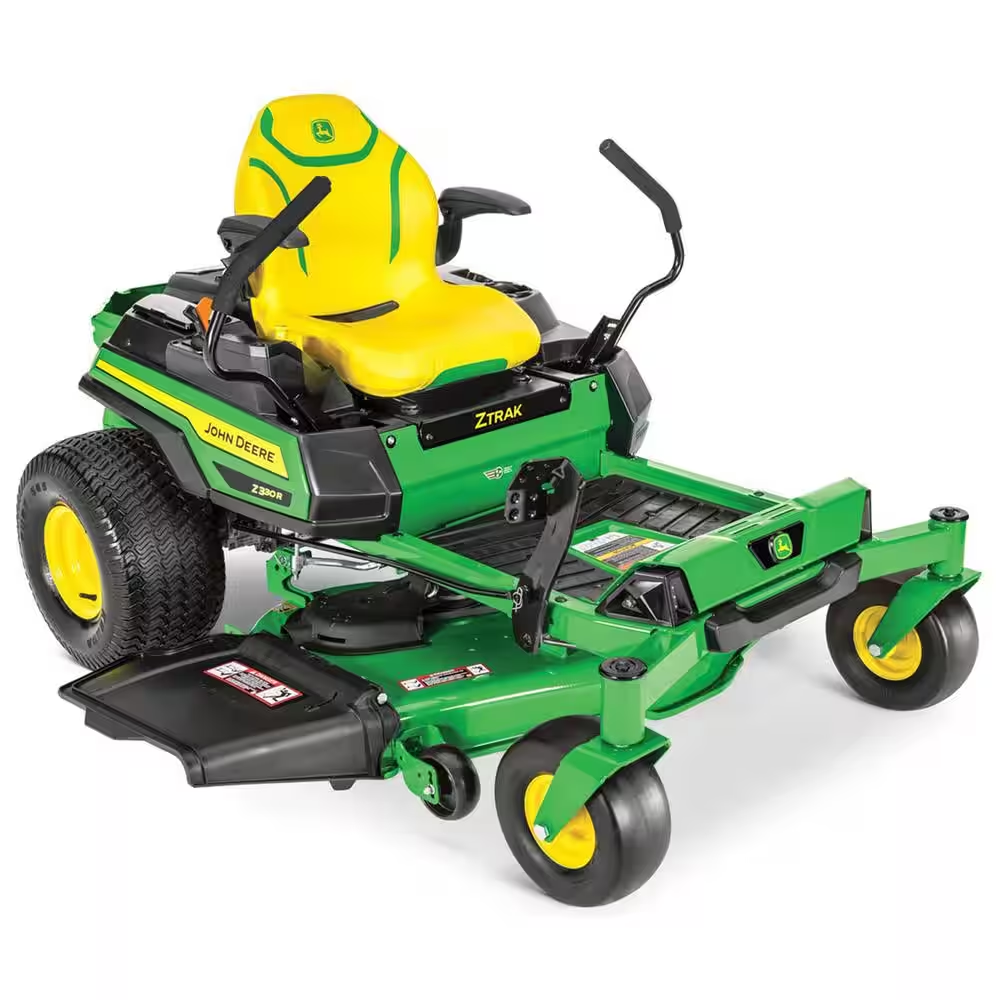

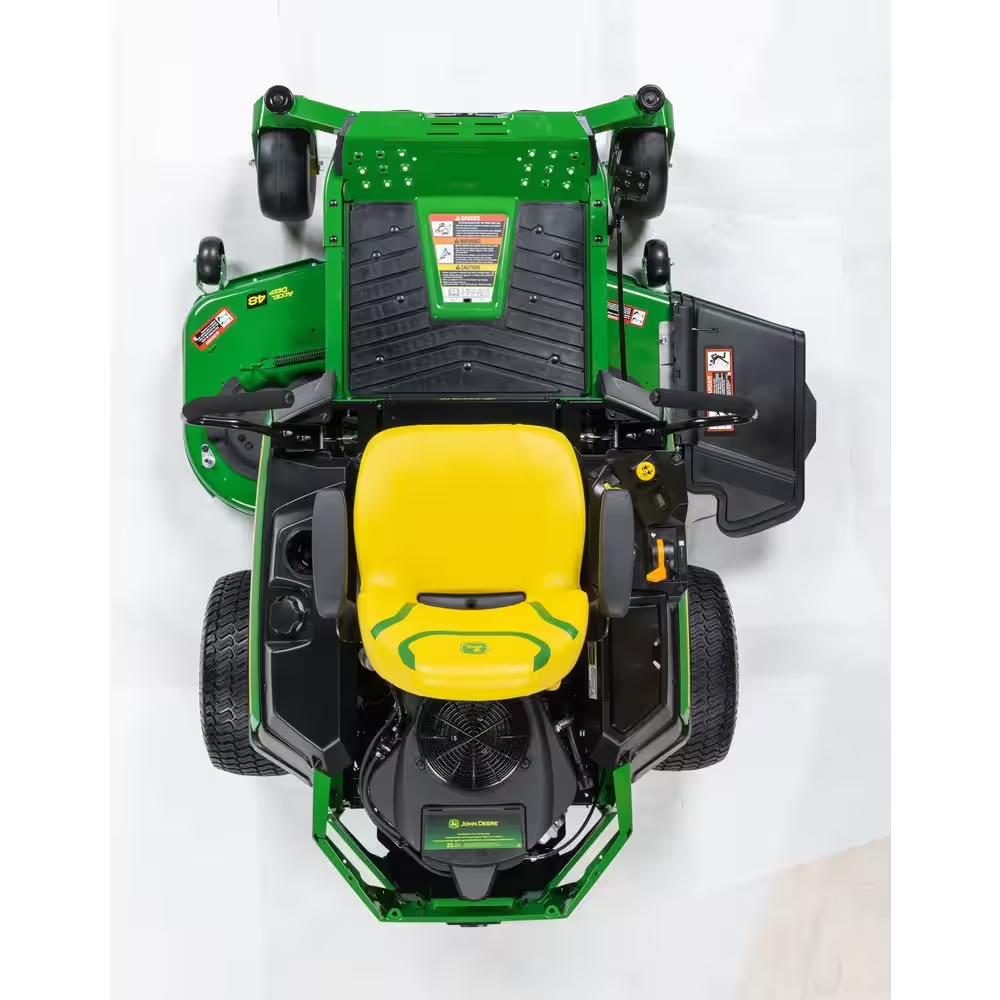

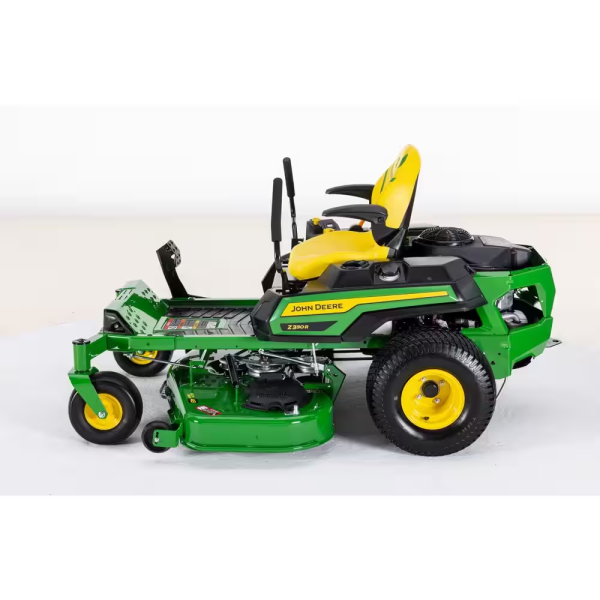

  	John Deere Z330R ZTrak™ Mower with 48-in. Deck

   Export to Excel

  Key Specs

  Engine power	23 hp 17.2 kW
  Engine model number	FR691V
  Forward speed	0-7 mph 0-11.3 km/h
  Front caster tires	11×6-5
  Drive tires	20×10-8
  Seat back height	High back with armrests, 20 in. 51 cm
  Width of cut	Accel Deep™ mower deck, 48 in. 122 cm Accel Deep™ mower deck, 54 in. 137 cm
  Mulching system	Optional MulchControl™ attachment
  Warranty	3 year or 200 hour bumper-to bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)

  Engine

  Power	23 hp 17.2 kW
  Model number	FR691V
  Displacement	44.3 cu in. 726 cc
  Cylinders	V-twin
  Lubrication	Full pressure with replaceable filter, capacity, 2.2 U.S. qt 2.1 L
  Type	Overhead valve
  Battery	12 V 300 CCA
  Choke/speed control	Separate levers
  Cooling method	Air
  Fuel tank capacity	3.0 U.S. gal. 11.4 L
  Fuel gauge	Translucent tank

  Drive train

  Dual hydros	Hydro-Gear EZT-D with 1-in. (2.5-cm) axles

  Travel speed

  Forward speed	0-7 mph 0-11.3 km/h
  Reverse speed	0-3.5 mph 0-5.6 km/h
  Speed and direction control	Twin levers
  Control adjustment	3 height, 11 positions

  Chassis

  Frame	Heavy-duty 2.5-in. x 2-in. (6-cm x 5-cm) front, and 1.5-in. x 2-in. (4-cm x 5-cm) side tubing
  Primer/paint	E-coat/powder
  Front caster tires	11×6-5
  Front caster bearings	Sealed ball bearings
  Drive tires	20×10-8
  Hour meter	Yes
  Service interval decal	Yes
  Storage compartment	Standard covered
  Cup holder	Yes
  Maximum towing capacity	250 lb 113 kg

  Seat

  Seat back height	High back with armrests, 20 in. 51 cm
  Fore-aft adjustment	2.9 in. 7 cm
  Seat suspension	Two springs

  Lift system

  Type	Foot lift
  Mower cut height	1.25-4.5 in. 3-11 cm
  Cut height increments	0.25 in. 0.64 cm
  Preset cut height	Yes

  Mower deck

  Width of cut	Accel Deep™ mower deck, 48 in. 122 cm Accel Deep™ mower deck, 54 in. 137 cm
  Type	Side discharge
  Mower deck material	10 gauge 0.135 in. 3.4 mm
  Mower drive system	V-belt

  PTO

  Type	Electric, 105 lb-ft 142 Nm
  Drive	V-belt

  Dimensions

  Wheelbase	49.4 in. 1255 mm
  Overall length	75.4 in. 1915 mm
  Width without mower	43.3 in. 1100 mm
  Width with mower	48A: 62.6 in. 1590 mm 54A: 68.5 in. 1740 mm
  Width with mower (deflector raised for storage)	48A: 52.8 in. 1340 mm 54A:57.1 in. 1450 mm
  Height	44.2 in. 1123 mm
  Weight	48A: 611 lb 278 kg 54A: 623 lb 283 kg

  Operation

  Rollover protective structure (ROPS)	No
  Slope operating limit	13 degrees; 10 degrees with Material Collection System
  Operator presence system	Yes
  Park brake interlock	Yes
  Operator video	Yes, online

  Buyer’s notes

  Note 1	Durable Accel Deep Mower Decks are forged from 10-gauge steel with double captured mower wheels
  Note 2	Easily change cut height from 1.25 to 4.5 in. (3 to 11 cm) using the foot lift and cutting height dial
  Note 3	Integrated park brake is automatically applied when steering levers are stowed outward
  Warranty	3 year or 200 hour bumper-to bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)

  Optional attachments

  Mulching system	Optional MulchControl™ attachment
  Rubber floor mat	Standard
  Sun shade	Optional
  Mounted sprayer	Not available
  Protective cover	Optional
  Light kit	Standard
  Material collection system	Two-bag Power Flow MCS, 6.5 bu 229 L

  Manufacturing location	Greeneville, Tennessee, USA
  Date collected	3-Oct-22
